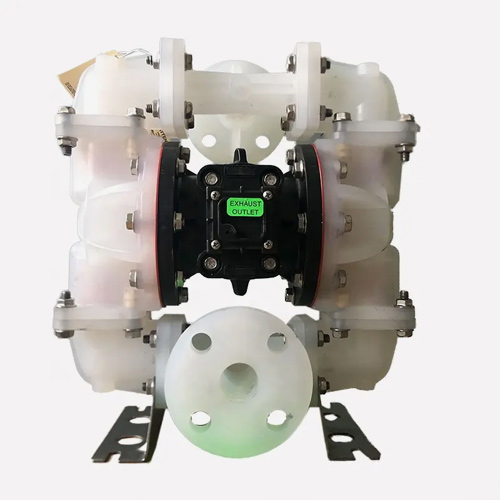

GB10 1" Non-Metallic Diaphragm Pump
| Ratio: | 1:1 |
| Maximum Flow gpm (lpm): | 23 (87) |
| Displacement per cycle gal (l): | 0.026 (0.098) |
| Air Inlet (Female): | 1/4"NPT |
| Fluid Inlet/Outlet: | 1" ANSI Flange |
| Max. operating pressure psi (bar): | 100-psi (7-bar) |
| Suspended solids max. dia in (mm): | 0.15 (4) |
| Weight (kg): | Polypropylene: 19/ PVDF: 24 |
| Muffler: | Included |
